Postby areibel » Mon Nov 23, 2009 10:04 pm

HP had two versions of their E-7 diesel. The original is on the bottom, the shell is stamped metal and the sideframes are, uh, unique? The top one is the later version, it has a cast nose piece with a stamped body, and it had the lost wax side frame castings. It also has some small added roof panels made of stamped metal
areibel

Posts: 1759
Images: 7
Joined: Fri Jun 12, 2009 10:12 am
Location: Cambridge Springs PA

Re: HP E-7

Postby AstroGoat760 » Sat Apr 24, 2010 1:08 pm

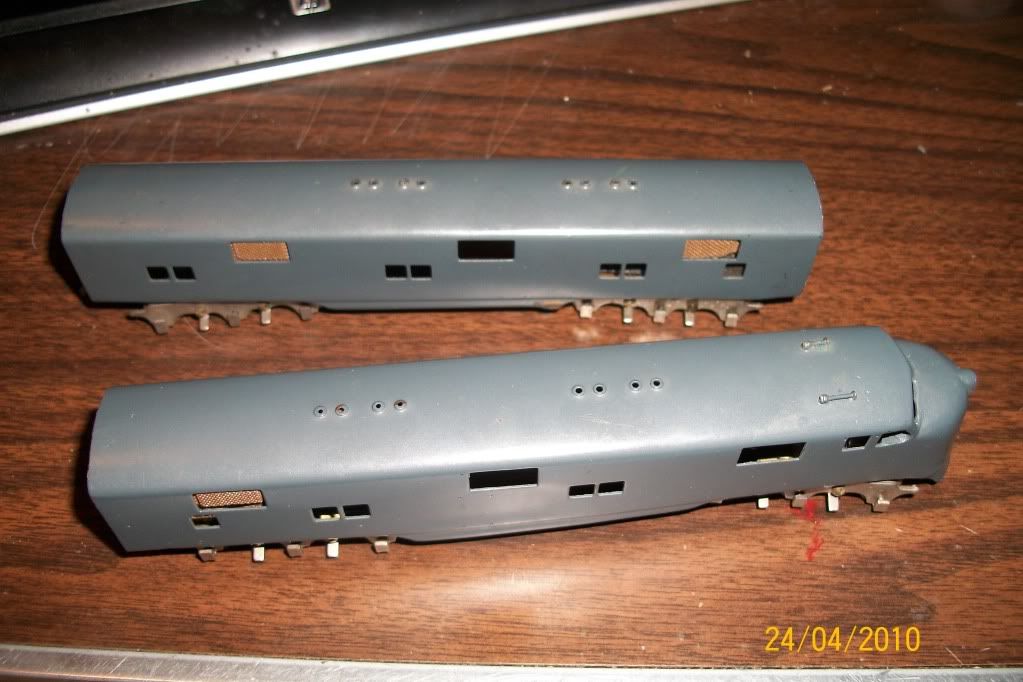

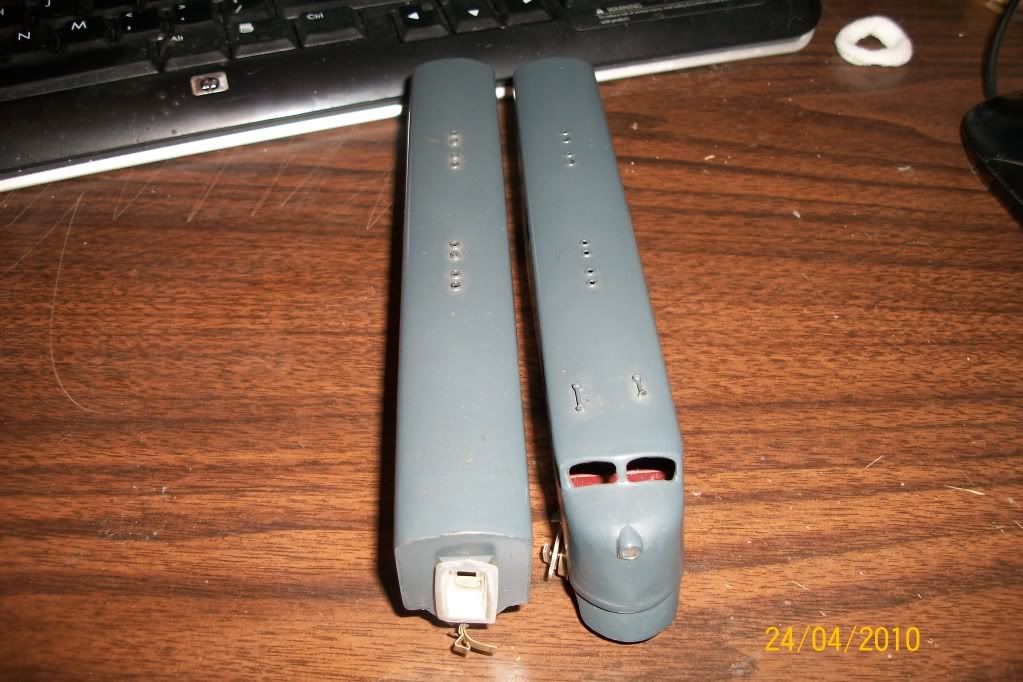

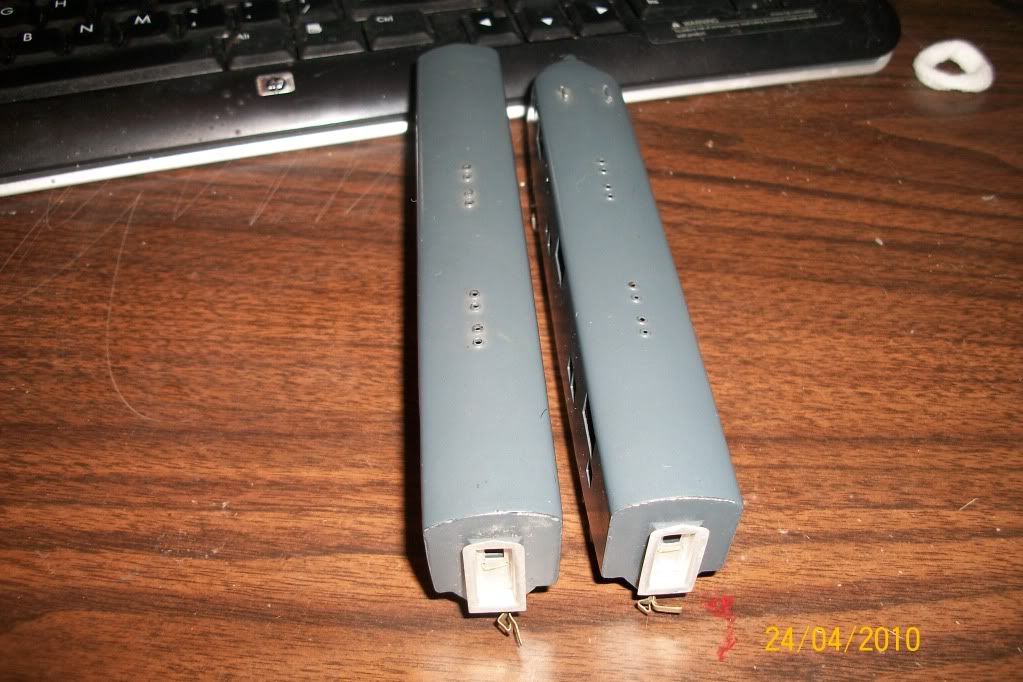

Here are some additional photos of the HP Products E-7 A unit, as well as the E-7 B unit, which were often referred to as "Diesel A" and "Diesel B" in HP Products advertisements.

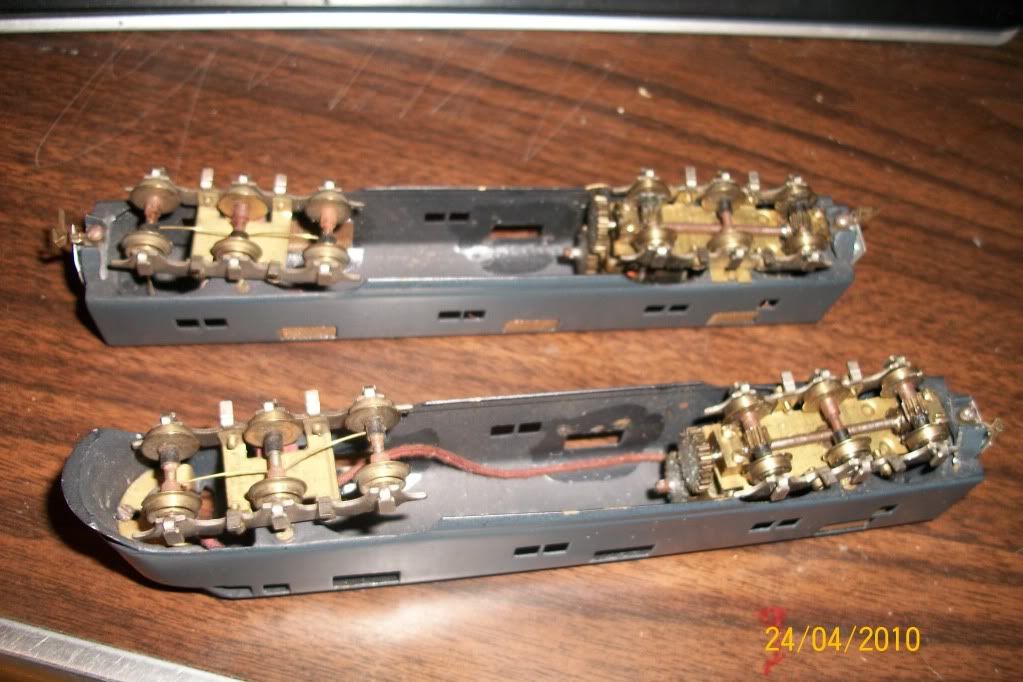

Both units are 6 axle units. The power truck, which is on the rear of each unit, uses the same configuration as the real life E-7: A1A, meaning 3 axle, the outer are powered, with a center idler axle to help distribute the weight of the unit. The front trucks are all idlers, with the outer axles actively used for electrical pick-up and the center one passively.

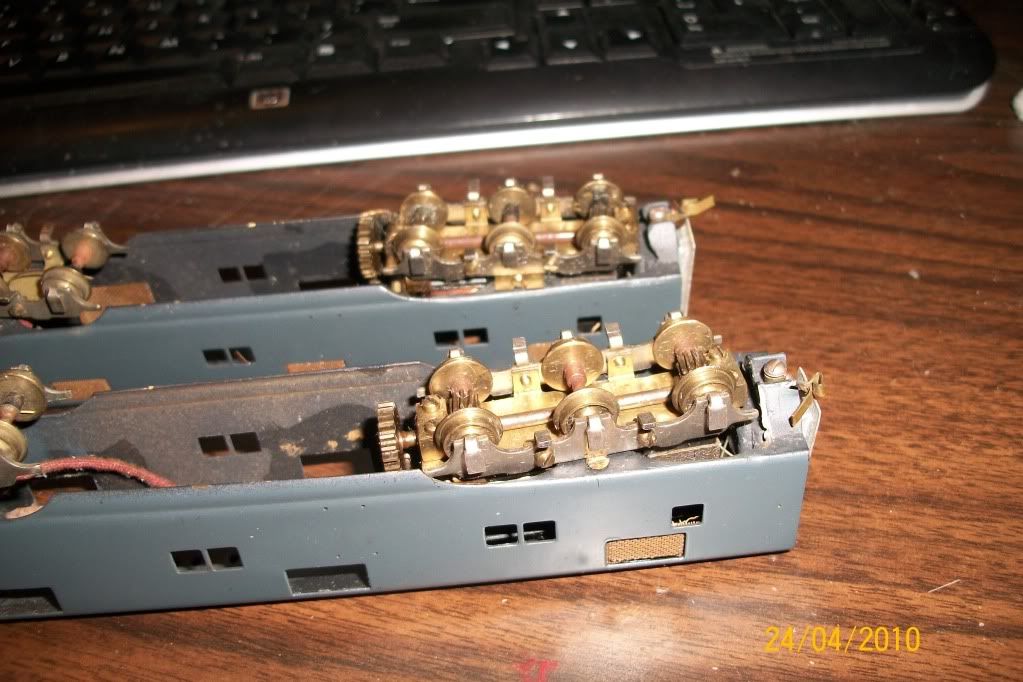

A close up of the power units, with the A1A power trucks:

Both my E-7A and E-7B came with New York Central decals. Both are somewhat curled, and as such would not take good photos. I will try to scan them later on and post them.

About the Prototype: The E-7 was the 8th model of the 6 axle "E-Unit" series of passenger locomotive. The engine was of the A1A-A1A configuration, meaning two trucks of 3 axles each with the outer trucks powered and the center ones not.

The last three of the series, the E-7, E-8, and E-9 are close in body design, with the biggest difference between the E-7 and the E-8/9 being the grilles on the sides of the cab and the design of the porthole windows, with the E7 having square windows and the E-8/9 having circular windows along the flank of the engine.

There is only one E-7 A unit left, and it resides in Strasburg, PA at the Railroad Museum of Pennsylvania; PRR# 5901.

428 A-units were built between 1945 and 1949. 82 B-units were built between 1945 and 1948, none remain today.
Course Set, Speed - Maximum Warp, PUNCH IT!
User avatar
AstroGoat760

Posts: 3885
Images: 0
Joined: Fri Jul 24, 2009 8:07 pm
Location: Bemidji, Minnesota, USA

Re: HP E-7

Postby AstroGoat760 » Sat Apr 24, 2010 6:26 pm

In keeping with the "prototypes/models" theme of this section, I felt it prudent to post some photos of real E-7 locomotives.

Course Set, Speed - Maximum Warp, PUNCH IT!
User avatar
AstroGoat760

Posts: 3885
Images: 0
Joined: Fri Jul 24, 2009 8:07 pm
Location: Bemidji, Minnesota, USA

Re: HP E-7

Postby Rob M » Sun Feb 19, 2012 5:07 pm

Dead image links removed.
Last edited by Rob M on Wed May 02, 2018 4:55 pm, edited 1 time in total.
User avatar
Rob M

Posts: 614
Joined: Mon Jan 30, 2012 12:35 pm
Location: Northern Wisconsin

Re: HP E-7

Postby Arseny » Sun Feb 19, 2012 5:38 pm

Wow, Rob, your locomotive is brilliant!

I've seen some HP E7 on Ebay, but didn't buy it, because I was sure it is too rough... maybe I was wrong?
User avatar
Arseny

Posts: 2713
Joined: Fri Jul 03, 2009 4:42 am
Location: Saint-Petersburg, Russia

Re: HP E-7

Postby Rob M » Sun Feb 19, 2012 6:01 pm

Thanks, the cast side frames helps a lot in the looks department. But, they are not real good runners.
User avatar
Rob M

Posts: 614
Joined: Mon Jan 30, 2012 12:35 pm
Location: Northern Wisconsin

Re: HP E-7

Postby ConducTTor » Sun Feb 19, 2012 7:45 pm

Damn Rob, your models are gorgeous. Welcome to the site!
What people think: "liberals/conservatives are ruining my country"
What the ruling class know: divide and conquer
User avatar
ConducTTor
Site Admin

Posts: 8631
Images: 13
Joined: Sat May 23, 2009 4:52 pm
Location: Atlanta GA USA

Re: HP E-7

Postby TTTerrific » Sun Feb 19, 2012 11:50 pm

Gorgeous paint job! :thumbup: :thumbup: I just wish there were some "drop-in" power trucks available to turn such a set as your E-7's in "good runners." I know that I have a few "hanger queens" around in my collection of TT stuff.
TTTerrific

Posts: 148
Joined: Mon Feb 14, 2011 2:14 am
Location: Hollister, California

Re: HP E-7

Postby railtwister » Mon Feb 20, 2012 10:19 am

Rob,

Probably two reasons they aren't such good runners are limited pickup and poor wiper design, plus they are only powered to two wheels (one truck). Using a motor with archaic magnets doesn't help either...

Never mind that, they look really good!

Bill in FL
railtwister

Posts: 722
Images: 4
Joined: Sun Oct 04, 2009 8:39 am
Location: Oakland Park (Ft. Lauderdale), FL, USA

Re: HP E-7

Postby Rob M » Mon Feb 20, 2012 1:15 pm

Thanks again guys!

I probably should have mentioned that the photos I posted yesterday are of models I no longer have. I do still have these though :) (and others I need to dig out)

Dead image links removed.
Last edited by Rob M on Wed May 02, 2018 4:55 pm, edited 1 time in total.
User avatar
Rob M

Posts: 614
Joined: Mon Jan 30, 2012 12:35 pm
Location: Northern Wisconsin
