Postby AstroGoat760 » Sun Jan 03, 2010 11:00 pm

I decided to proceed with my second scratch-built car while the first (a Pickle Vat car) is partly completed. This car makes use of the car sides and ends obtained from Coastal Engineering. This one will use the blank double door sides, to improve my experience and skills before I try to use the Canadian Pacific printed Jewel sides. (That will likely be project #4).

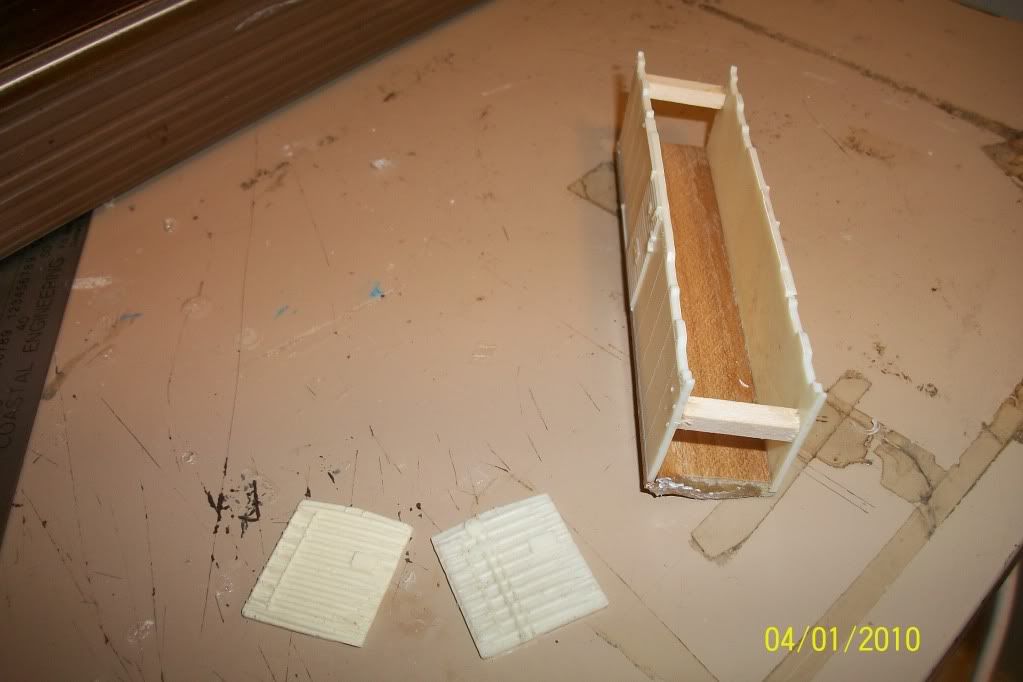

Here are a pair of photos showing off the frame progress.
Last edited by AstroGoat760 on Sat Jun 10, 2017 9:42 pm, edited 2 times in total.
