Postby AstroGoat760 » Sat Dec 24, 2016 9:22 pm

I am looking into the possibility of making a TT scale model of the ACS-64, which is the latest electric power unit used by Amtrak. Does anyone have advice on a particular model to use to use as the base for the modification?
Course Set, Speed - Maximum Warp, PUNCH IT!
User avatar
AstroGoat760

Posts: 3462
Images: 0
Joined: Fri Jul 24, 2009 8:07 pm
Location: Minnesota, USA

Re: ACS-64

Postby ConducTTor » Sun Dec 25, 2016 10:52 am

I've been thinking about this model as well. It's a Siemens design based on European prototypes which exists in TT. I haven't done the research before but since I have nothing better to do, I'll do it now and report the findings.
What people think: "liberals/conservatives are ruining my country"
What the powerful know: divide and conquer
User avatar
ConducTTor
Site Admin

Posts: 8293
Images: 13
Joined: Sat May 23, 2009 4:52 pm
Location: Atlanta GA USA

Re: ACS-64

Postby ConducTTor » Sun Dec 25, 2016 11:13 am

I'm having trouble finding all the important dimensions for the various locomotives in the family. Looks like Piko's BR 182 has the closest wheel size coming in at just 1.4" oversize (at 1:1 scale). I can't find the ACS-64 bogie size anywhere though to compare. Can't find the 182 bogie centers either. I have the model but it's packed away in storage so I can't measure it. For reference the following models of the family exist in TT: BR182, BR183, BR189, Vectron.
What people think: "liberals/conservatives are ruining my country"
What the powerful know: divide and conquer
User avatar
ConducTTor
Site Admin

Posts: 8293
Images: 13
Joined: Sat May 23, 2009 4:52 pm
Location: Atlanta GA USA

Re: ACS-64

Postby Richard-B » Sun Dec 25, 2016 1:38 pm

I believe that the ACS-64 is (at least in part) a Siemens Vectron derivative...
perhaps the TT-scale Piko Vectron would be a starting point?
http://www.piko-shop.de/index.php?vw_type=artikel&vw_id=21419
---------------------------------------------------------
Richard Brennan - http://www.tt-west.com
Somewhere between Shenzhen and Budapest...
User avatar
Richard-B

Posts: 824
Images: 1
Joined: Sun Oct 11, 2009 5:29 pm
Location: San Leandro, CA

Re: ACS-64

Postby ConducTTor » Sun Dec 25, 2016 3:24 pm

Richard-B wrote:I believe that the ACS-64 is (at least in part) a Siemens Vectron derivative...


Correct. But I'm not sure if wheel sizes, truck centers, and truck axle spacing are the same.
What people think: "liberals/conservatives are ruining my country"
What the powerful know: divide and conquer
User avatar
ConducTTor
Site Admin

Posts: 8293
Images: 13
Joined: Sat May 23, 2009 4:52 pm
Location: Atlanta GA USA

Re: ACS-64

Postby MacG » Tue Dec 27, 2016 12:27 pm

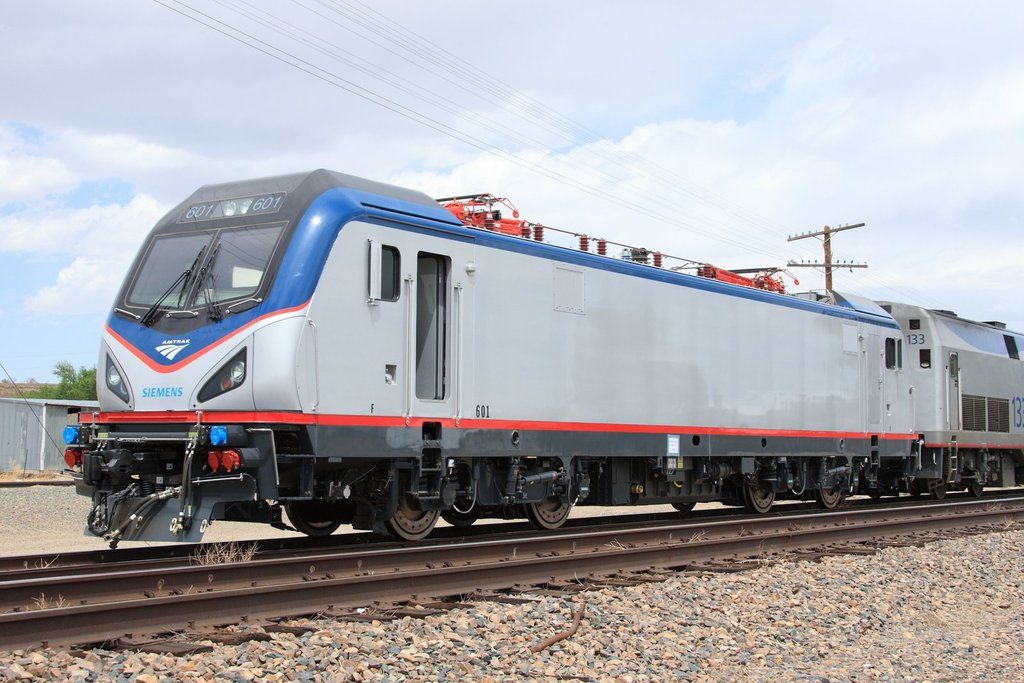

Based on this picture, I would think, it has the same truck axle spacing like the electric Vectron, with 3.000 mm.


The wheel sizes is at the electric Vectron minimal greater 1250 mm (new) / 1160 mm (worn).
Lok-n-Roll.de - we are shipping worldwide :wink:
User avatar
MacG

Posts: 796
Images: 11
Joined: Mon Aug 15, 2011 1:19 pm
Location: Dresden, Germany

Re: ACS-64

Postby krokodil » Tue Dec 27, 2016 1:29 pm

You cannfind the Siemens soecs here ( in German)

http://www.siemens.com/press/pool/de/ev ... ron_DE.pdf
Greetings from Austria
E.T.
User avatar
krokodil

Posts: 429
Joined: Tue Jan 29, 2013 6:46 pm

Re: ACS-64

Postby MacG » Tue Dec 27, 2016 3:16 pm

and in English

https://www.mobility.siemens.com/mobili ... nic-en.pdf

But there are also no data about truck centers and truck axle spacing. :thumbdown:
Lok-n-Roll.de - we are shipping worldwide :wink:
User avatar
MacG

Posts: 796
Images: 11
Joined: Mon Aug 15, 2011 1:19 pm
Location: Dresden, Germany

Re: ACS-64

Postby ConducTTor » Tue Dec 27, 2016 4:16 pm

MacG wrote:Based on this picture, I would think, it has the same truck axle spacing like the electric Vectron, with 3.000 mm.


The wheel sizes is at the electric Vectron minimal greater 1250 mm (new) / 1160 mm (worn).


Wikipedia gives ACS-64 wheel size as 1117mm new / 1041mm worn. Truck center distance as 9.9m / 32.5'. https://en.m.wikipedia.org/wiki/Siemens_ACS-64
What people think: "liberals/conservatives are ruining my country"
What the powerful know: divide and conquer
User avatar
ConducTTor
Site Admin

Posts: 8293
Images: 13
Joined: Sat May 23, 2009 4:52 pm
Location: Atlanta GA USA

Re: ACS-64

Postby krokodil » Tue Dec 27, 2016 6:42 pm

MacG wrote:and in English

https://www.mobility.siemens.com/mobili ... nic-en.pdf

But there are also no data about truck centers and truck axle spacing. :thumbdown:



Truck axle spacing is there, 3000 mm for electric locomotives and 2700mm for diesel electric locomotives.

http://w3.usa.siemens.com/mobility/us/en/interurban-mobility/rail-solutions/locomotives/Documents/Amtrak_DataSheet_2013_LR.pdf

Here you can even find the ACS specs. The truck centers are 9900 mm.
Greetings from Austria
E.T.
User avatar
krokodil

Posts: 429
Joined: Tue Jan 29, 2013 6:46 pm
